Manufacturing Standard
|
Precision Rating |
ABEC-1(p0) ABEC-3(p6) ABEC-5(p5) ABEC-7(p4) |
|
Seals Type |
Open, Z,ZZ,RS,2RS |
|
Material |
Bearing steel,carbonsteel,stainless steel,ceramic |
|
Bearing steel standard |
GCr15,SUJ2,100Cr6 |
|
Vibration Level Code |
V,V1,V2.V3 |
|
Radial Play(Clearance) |
C0,C2,C3,C4,C5 |
|
Noise Level |
Z1,Z2,Z3,Z4 |
|
Service support |
customization,OEM |
Features:
Tapered roller bearings have tapered inner and outer ring raceways and tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide true rolling and low friction.Depending upon the contact angle, tapered roller bearings are divided into three types; normal angle, medium angle, and steep angle.
Series:
1) Single row tapered roller bearings
2) Paired single row tapered roller bearings
3) Double row tapered roller bearings

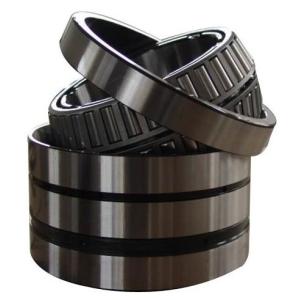

4) Four-row tapered roller bearings
Applications:
1) Steel Industry
2) Mining&Construction
3) Papermaking Machinery
4) Wind Turbines
5) Machine Tools
6) Gearboxes
7) Pump&Compressors
8) Injection Molding Machines
9) Motorcycles
10) Railways
Details:
| Principal dimensions | Basic load ratings | Speed ratings | Designation | ||||
|---|---|---|---|---|---|---|---|
| dynamic | static | Reference speed | Limiting speed | ||||
| d | D | T | C | C0 | * SK Explorer bearing | ||
| mm | kN | r/min | - | ||||
| 85 | 130 | 72 | 308 | 620 | 2800 | 4800 | 33017/QDFC240 |
